Report on surveys of the Swains sector of the Great Barrier Reef


  • Hard coral cover was high (30-50%) but had declined overall since 2017
  • Recent coral losses are due to increased crown-of-thorns starfish, Acanthaster cf. solaris* activity with outbreak densities observed on several reefs
  • There were no obvious signs of major coral mortality from bleaching in the past year on the perimeters of surveyed reefs.

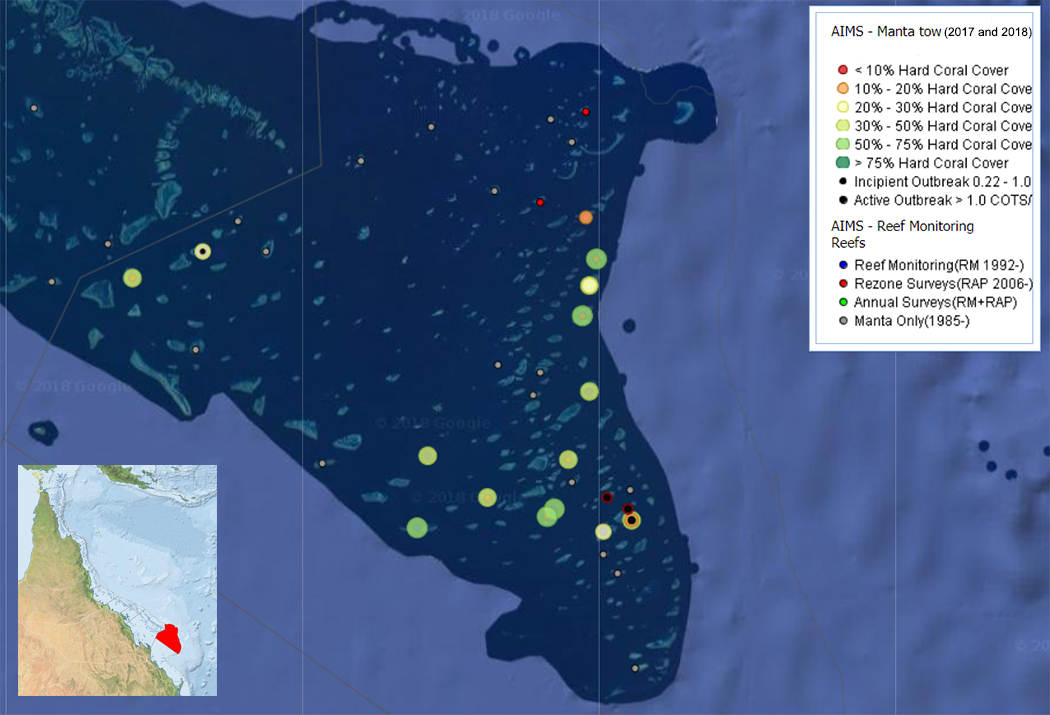

Figure 1: Map showing location of reefs in the Swain sector. Click on figure to go to AIMS Spatial Maps for information on individual reefs.

Table 1: Overview of results obtained from manta tow surveys of reefs in the Swain sector.

Swains Sector Summary Trend since last survey
Median Coral Cover High (30-50%) Decreased
COTS status: 3 Active Outbreaks, 1 Incipient Outbreaks Increased
Coral bleaching: Low Stable

As part of the Long Term Monitoring Program (LTMP), surveys of coral cover and of the abundance of the coral feeding crown-of-thorns starfish (COTS), Acanthaster solaris* on twelve reefs in the Swain sector of the Great Barrier Reef (GBR) have been completed using the manta tow technique. Preliminary results of the surveys are presented in Table 1 and 2. These show that median reef-wide live coral cover (hereafter: coral cover) had increased at six reefs, declined on five reefs and remained stable on one (Reef 21-139). Coral cover ranged from very low (0-5%) to very high (63-75%).

Outbreak densities of COTS were observed on Chinaman Reef, Jenkins Reef, Wade Reef and Reef 21-187. Coral cover was very low to moderate at each of the first three reefs, with COTS having already caused large declines in coral cover, particularly on Wade Reef and Jenkins Reef. Conversely, overall coral cover had increased on Reef 21-187 despite outbreak levels of COTS occurring in some areas of the reef. Coral cover had increased overall on the other reefs that were surveyed with the exception of Reef 21-296 and 21-139, where coral cover remained stable. The reason for the decline in coral cover at East Cay is unknown.

There were no signs of major coral mortality from bleaching in the past year on the perimeters of surveyed reefs. Low levels of white syndrome disease were recorded during scuba search surveys and small numbers of colonies with minor bleaching were seen on each reef. Overall there was no indication of widespread bleaching but there was some evidence of stress in the form of a slight colour change, especially on parts of Jenkins Reef where some corals on the reef flat were “fluorescent” in appearance.

Details of the manta tow method can be found in the Standard Operational Procedure No. 9 [AIMS Research - Crown-of-thorns Starfish and Coral Surveys - Standard Operational Procedure 9]. Further details of the monitoring program design, sampling methods and a full explanation of the A. solaris outbreak terminology can be found on the AIMS website.

*Note: genetic studies show that there are at least four species of COTS. These are the North and South Indian Ocean species (A. planci and A. mauritiensis), Red Sea species (not yet named) and a Pacific species. The range of the Pacific includes the Great Barrier Reef and it has been provisionally named Acanthaster solaris (Haszprunar et. al. 2017).

Table 2: Summary of manta tow surveys of reefs in the Swain sector. Arrows indicate the trend in live coral cover and A. solaris since last survey; ▲ = increase, ▼ = decrease, “ ” = no change.

Reef Shelf Position Tows Previous survey year A. solaris A. solaris per tow Median Live Coral Cover Median Soft Coral Cover Reef Status
21-139 Mid 54 2016 0 0 30-40% 0-5% NO
21-187 Mid 39 2016 20 ▲ 0.51 20-30% ▲ 0-5% IO
21-550 Mid 36 2016 0 0 30-40% ▲ 0-5% NO
22-084 Mid 17 2016 0 0 63-75% ▲ 0-5% NO
CHINAMAN Mid 34 2017 89 ▼ 2.62 5-20% ▼ 0-10% AO
JENKINS Mid 37 2016 81 ▲ 2.19 0-5% ▼ 0-5% AO
SMALL LAGOON Mid 37 2016 2 ▲ 0.05 30-40% ▲ 0-5% NO
WADE Mid 27 2016 21 ▲ 0.78 0-5% ▼ 0-5% ▼ AO
21-296 Outer 42 2016 0 0 5-20% ▼ 0-5% NO
21-302 Outer 21 2016 0 0 63-75% ▲ 0-5% ▼ NO
21-558 Outer 53 2016 8 ▲ 0.15 50-63% ▲ 0-5% NO
EAST CAY Outer 67 2017 1 ▲ 0.01 20-30% ▼ 0-5% NO

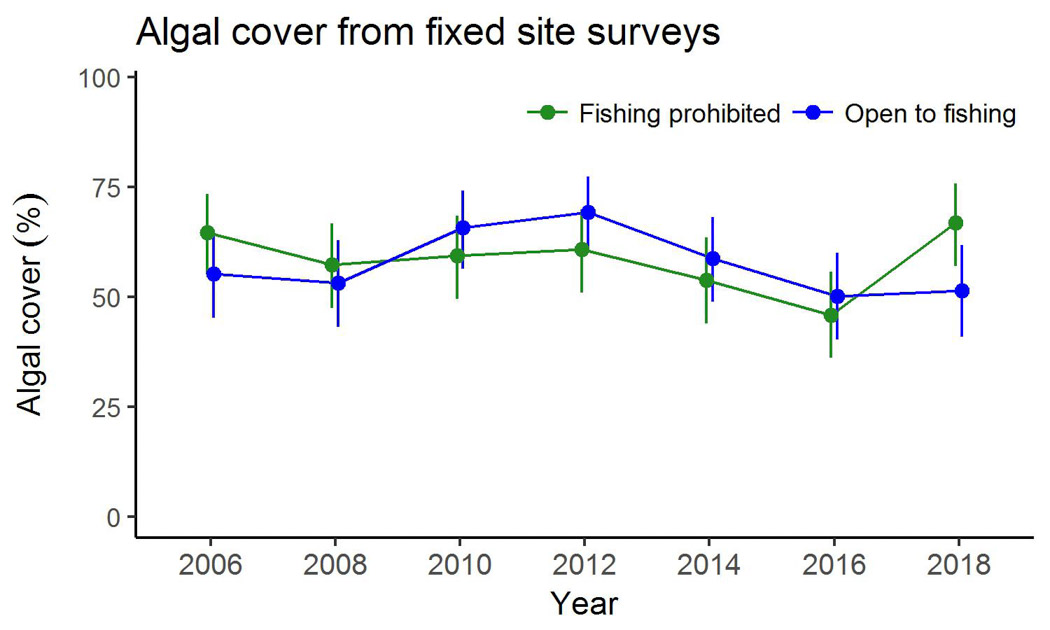

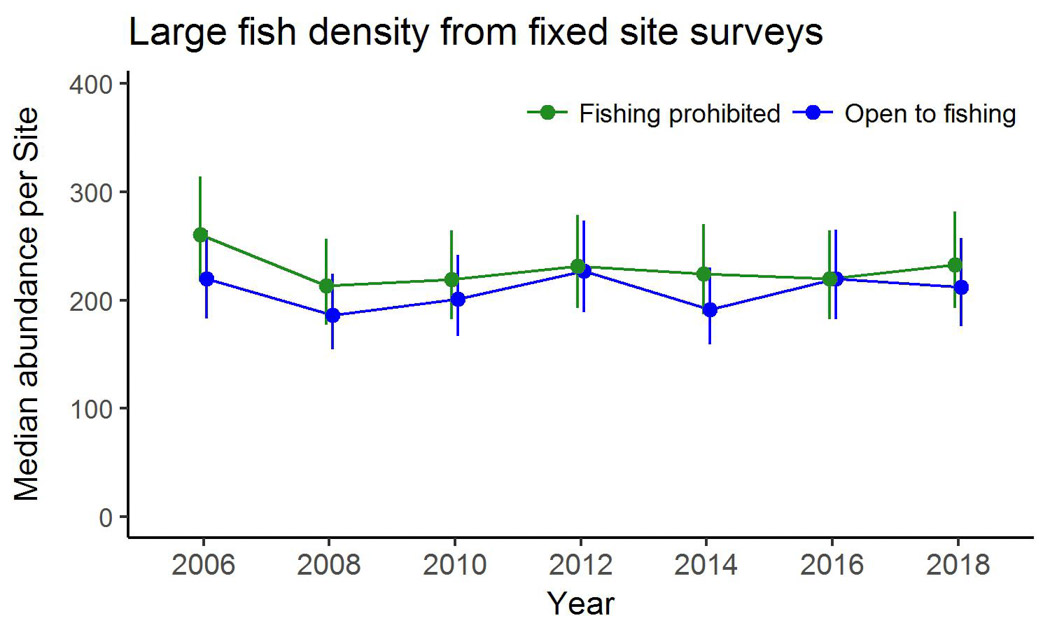

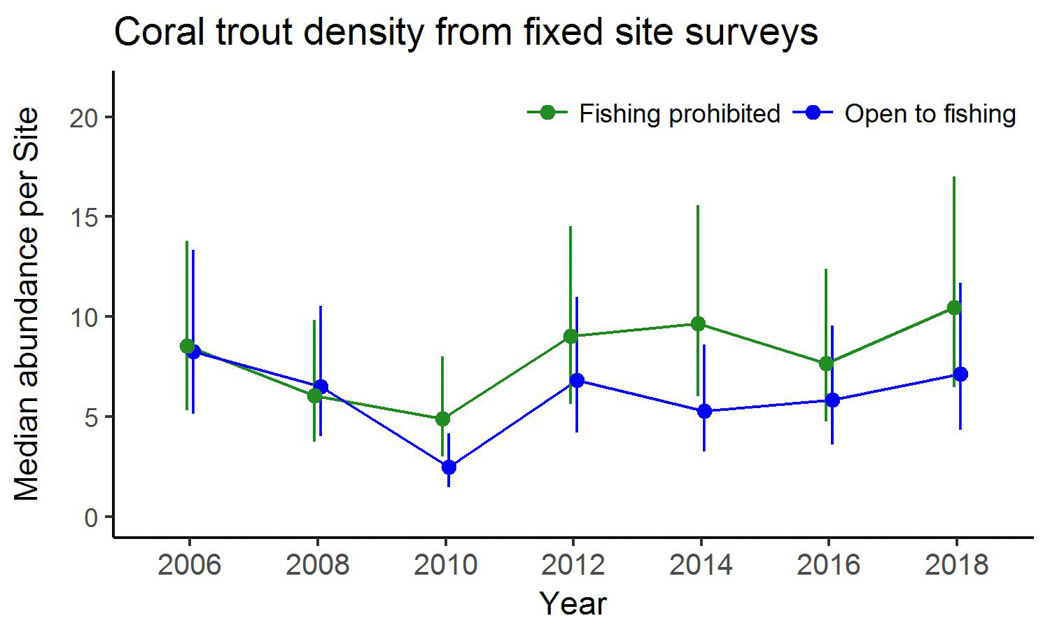

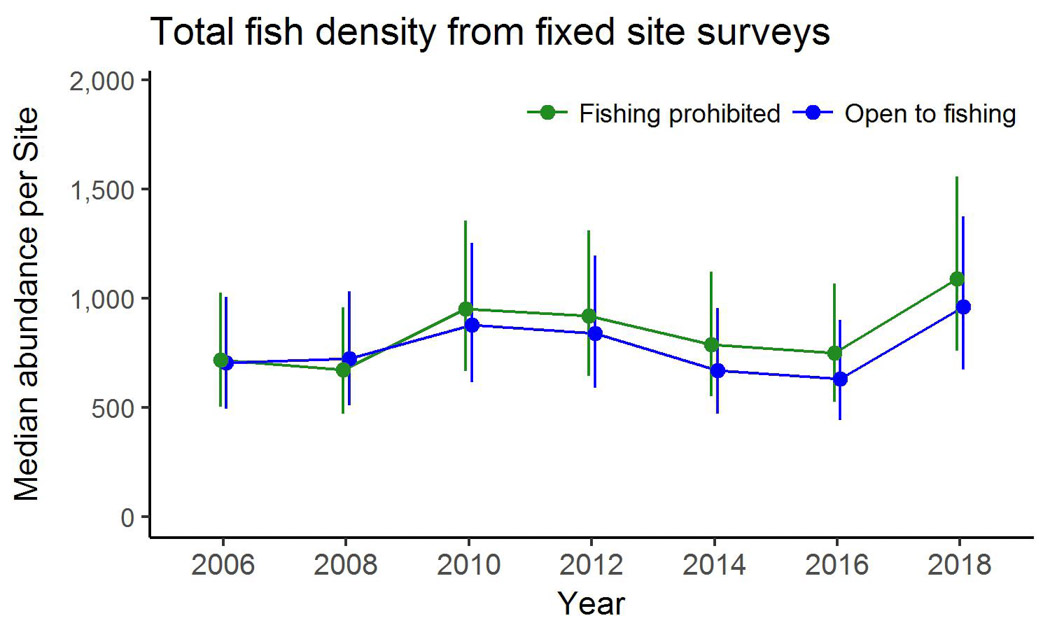

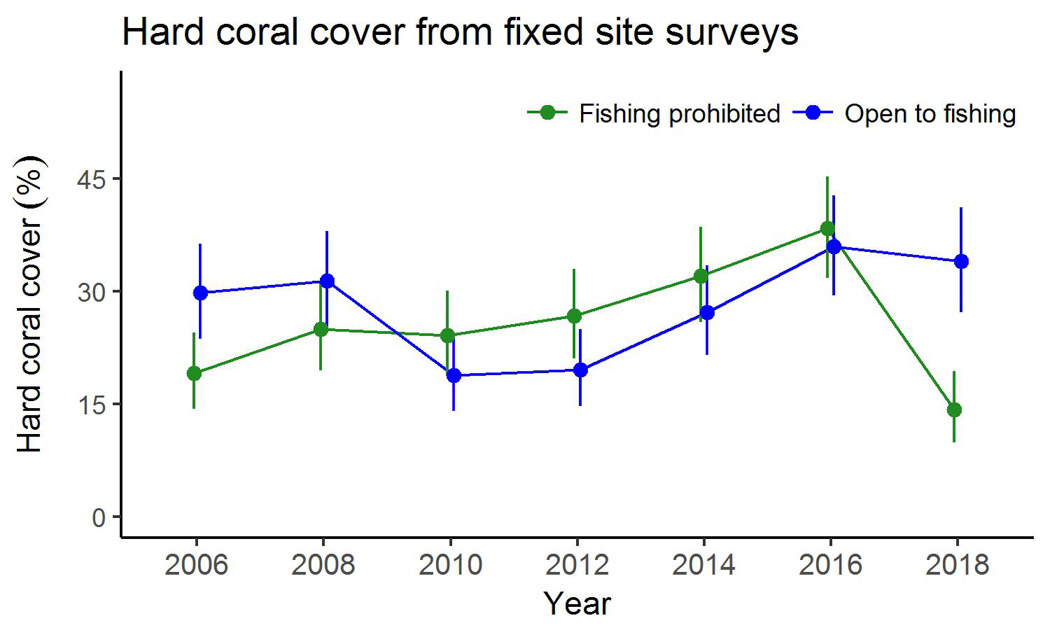

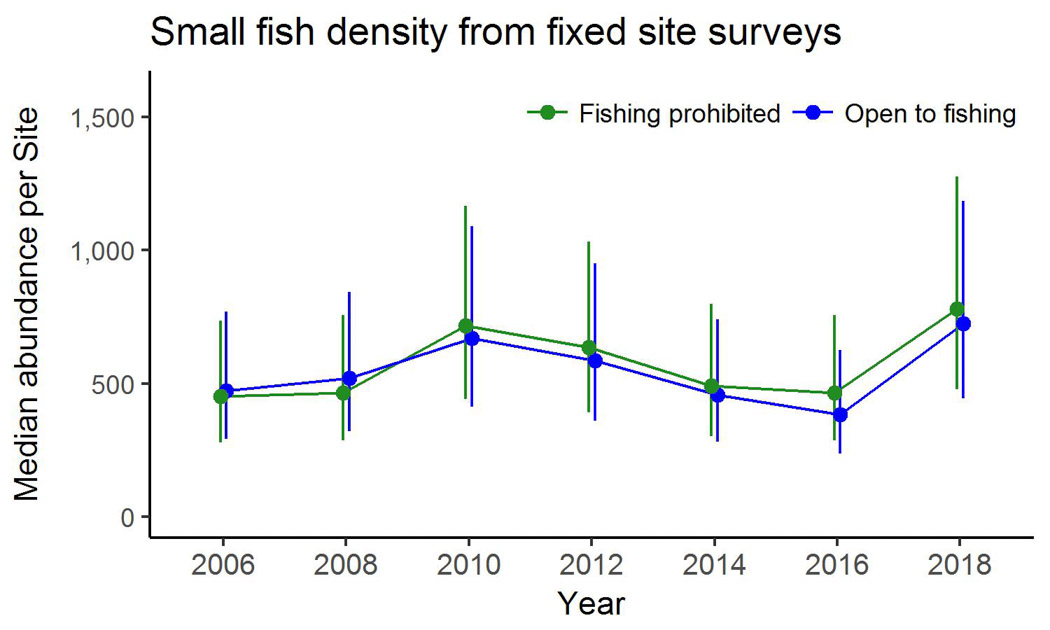

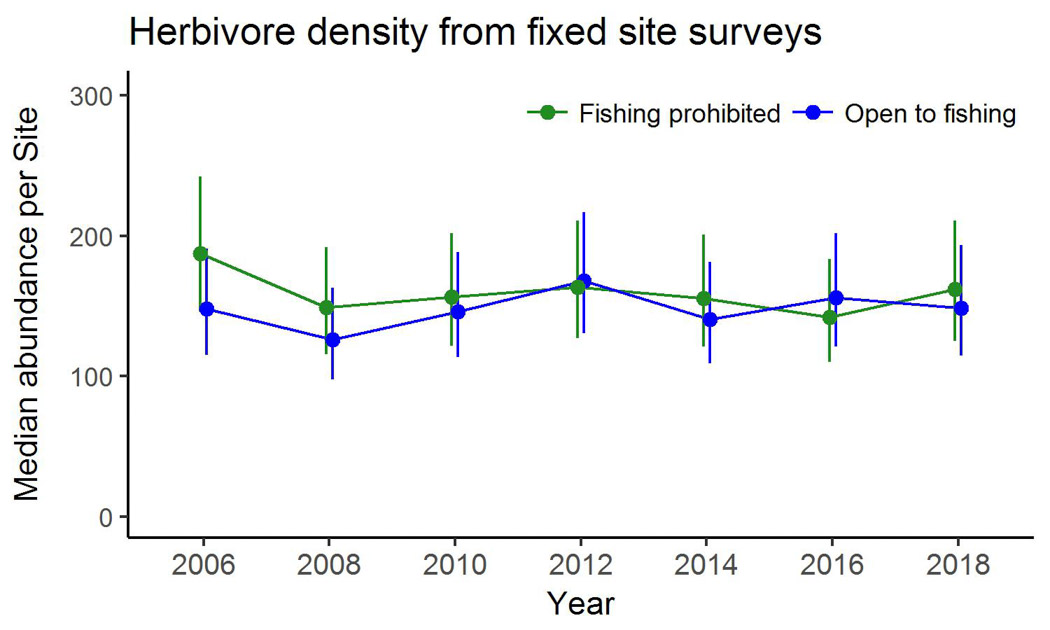

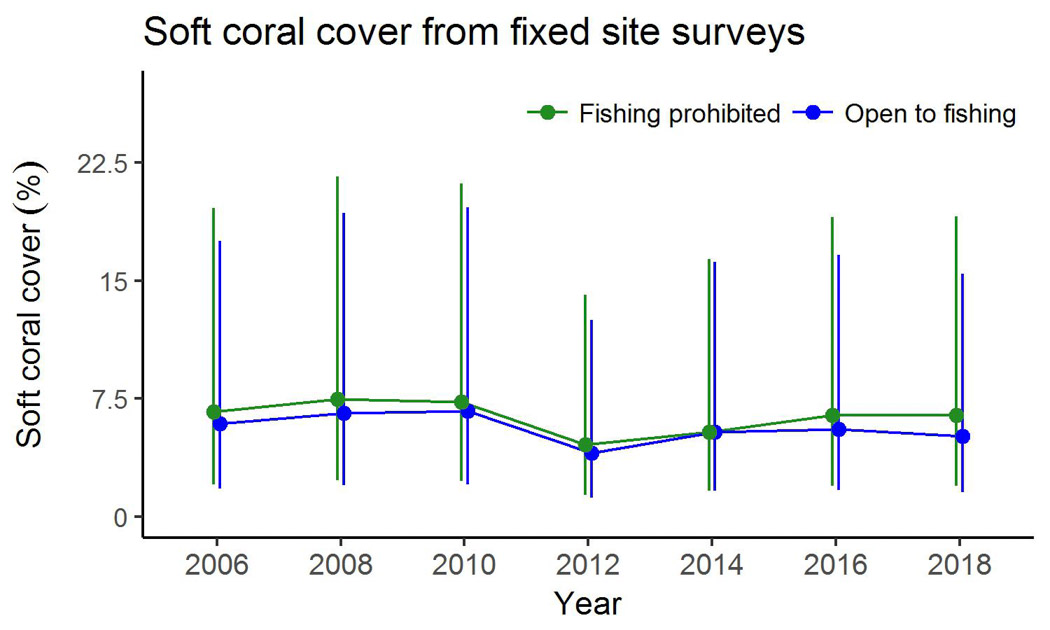

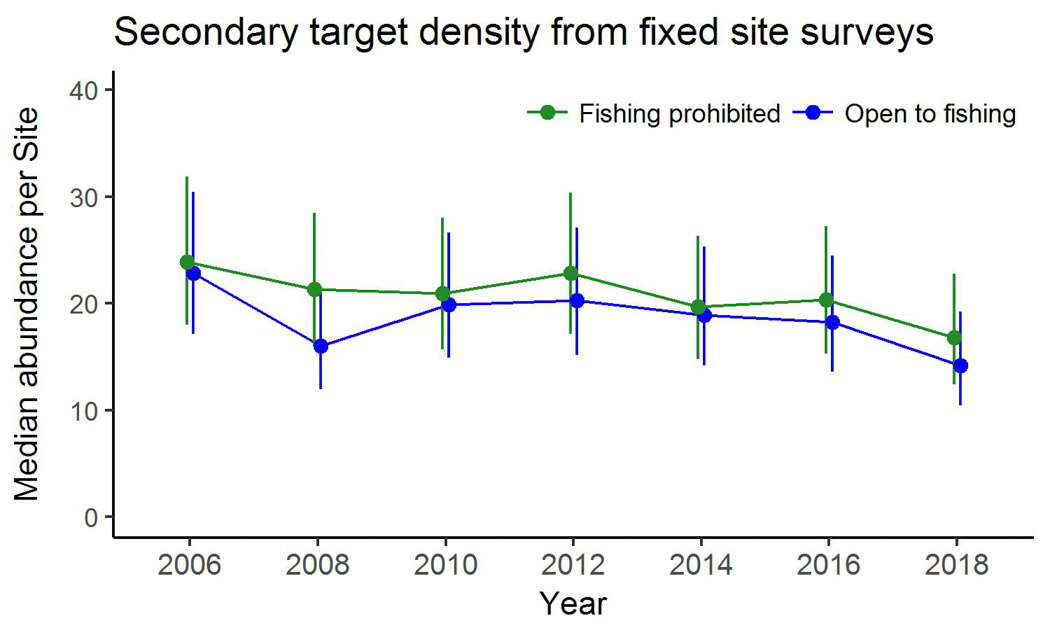

Figure 3: Effects of marine park zoning. Comparisons of the median values of nine variables through time, based on surveys of fixed sites on matched pairs of reefs in this sector. One reef in each pair was rezoned so fishing was prohibited (Green zone) in 2004, the other reef in each pair remains open to fishing (Blue zone). Error bars are 95% credible intervals. Please click on each panel for an enlarged view.

Dates: 15th January– 4th February 2018

Vessel: RV Cape Ferguson

Survey leader: Kate Osborne and Mike Emslie

Details of the manta tow method and results can be found here.

Click here for further details of the monitoring program design, sampling methods and a full explanation of the A. planci outbreak terminology.

For enquiries, please contact

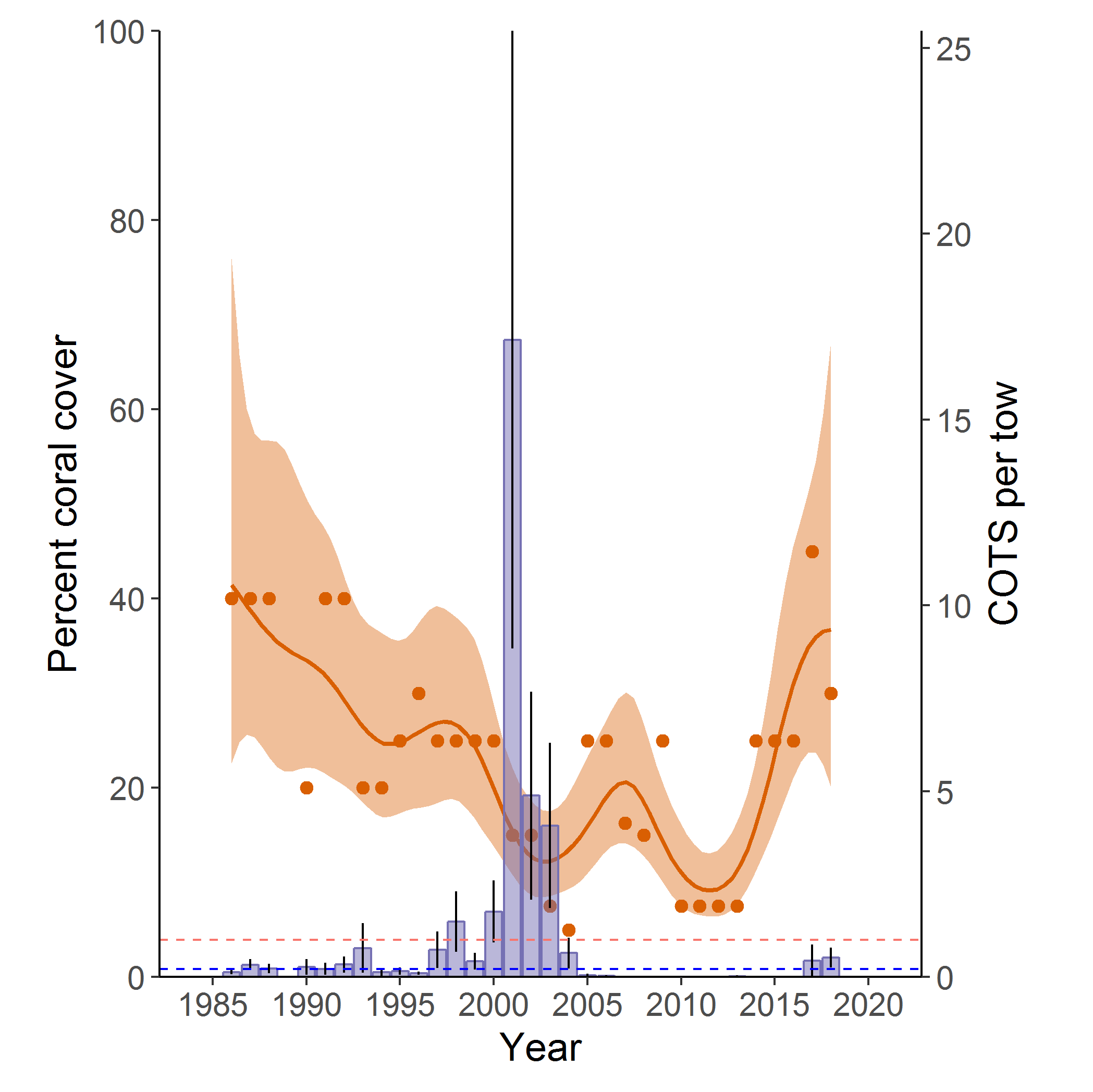

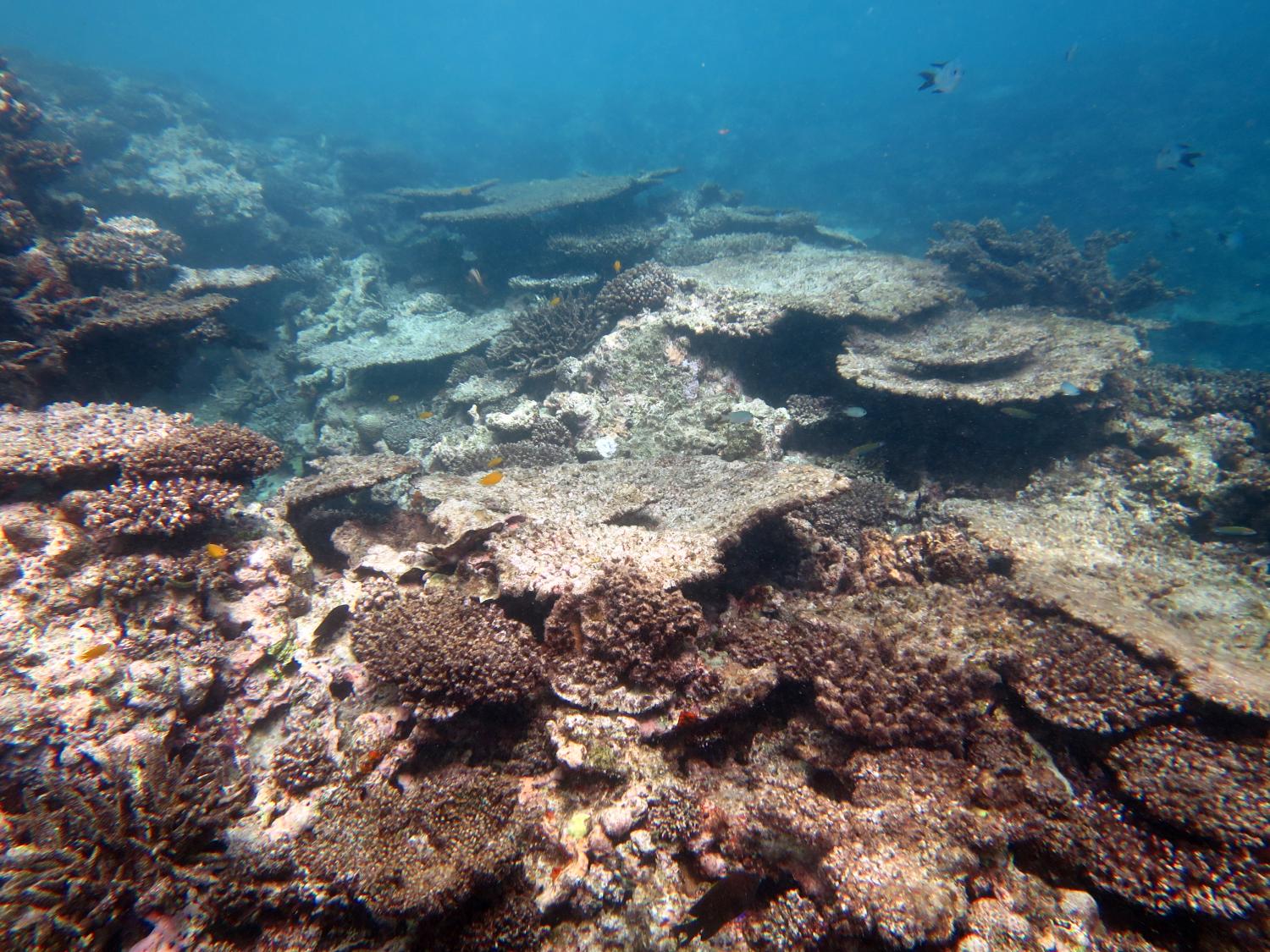

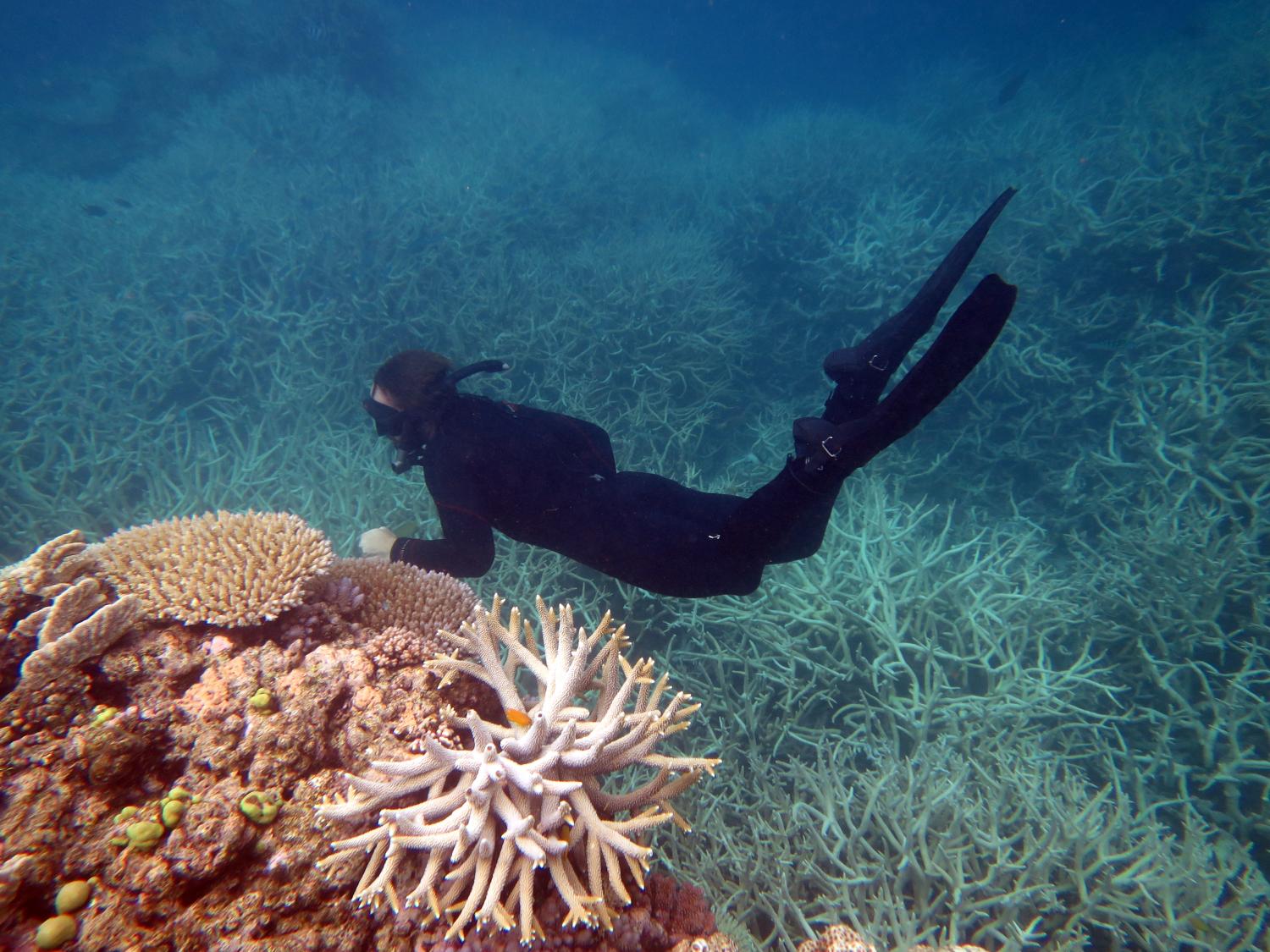

<p><strong>Figure 2:</strong> Sector-wide changes in coral cover and the numbers of A. <em>solaris</em> for survey reefs in the Swain sector of the GBR.</p> <p><strong>Image 1:</strong> There have been A. <em>solaris</em> outbreaks on reefs in the south east of the Swains since they were last surveyed in 2016. On Jenkins Reef coral cover was 0-5%.</p> <p><strong>Image 2:</strong> Crown-of-thorns starfish attack a surviving coral colony on Jenkins Reef.</p> <p><strong>Image 3:</strong> Panoramic view of the reef slope on Reef 21-558. The reef crest had high coral cover, an indication that coral bleaching has been less severe than on the northern Great Barrier Reef</p> <p><strong>Image 4:</strong> AIMS volunteer diver snorkels on Reef 21-558, where coral cover was still high. There was no evidence of large scale mortality from coral bleaching since the last surveys in 2016/2017, but some scattered colonies were pale in January 2018.</p> Little coral remained at Jenkins Reef. A. solaris were observed on remnant coral including this large Porites sp. bommie.
