- Nine reefs were surveyed in December 2019.
- Sector-wide hard coral cover was moderate (10 to 30%).
- Damage from Severe Tropical Cyclone Trevor was minimal, but most survey reefs were well south of the track.
- On one reef close to the path of Tropical Cyclone Trevor hard coral had declined.
- On two reefs previously surveyed in 2012/13 hard coral cover was low (0 to 10%).
- Low numbers of COTS were recorded on one reef, but below outbreak levels.
Hard Coral Cover 0-10% 10-30% 30-50% 50-75% 75-100%
Figure 1: Map showing location of reefs in the Princess Charlotte sector. Click the points for more information.
Table 1: Overview of results obtained from manta tow surveys of reefs in the Princess Charlotte sector
|Princess Charlotte Bay Sector||Summary||Trend since last survey|
|Average Coral Cover (%)||16.9||Decreased|
|COTS status:||No Outbreaks||Stable|
As part of the Long-Term Monitoring Program (LTMP), manta tow surveys of hard coral cover and the abundance of the coral feeding crown-of-thorns starfish (COTS), Acanthaster cf. solaris* were completed on nine reefs in the Princess Charlotte Bay sector of the Great Barrier Reef (GBR). Preliminary results of the manta tow surveys are presented in Tables 1 and 2.
The overall median hard coral cover for the sector was moderate (10 to 30%) but there was a small decline since last surveyed. Median reef-wide hard coral cover was low (0 to 10%) on three reefs, moderate (10 to 30%) on five reefs and high (30-50%) on one reef (Table 2). Hard coral had declined on six reefs. Hedge Reef and Reef 13-093 were last surveyed in 2013, prior to the 2016 and 2017 coral bleaching events, and the declines in hard coral cover on these reefs most likely represents impacts from the 2016/17 bleaching, although other impacts cannot be discounted. Osborne Reef was last surveyed in August 2016 and Reef 13-040 was last surveyed in January 2019 so the decline at Reef 13-040 was most likely due to Severe Tropical Cyclone Trevor in March 2019, while the decline at Osborne Reef is probably due to a combination of mass coral bleaching and the cyclone. Hard coral increased on three reefs (Table 2). Low numbers of COTS were recorded at one reef during manta tow surveys (Table 2).

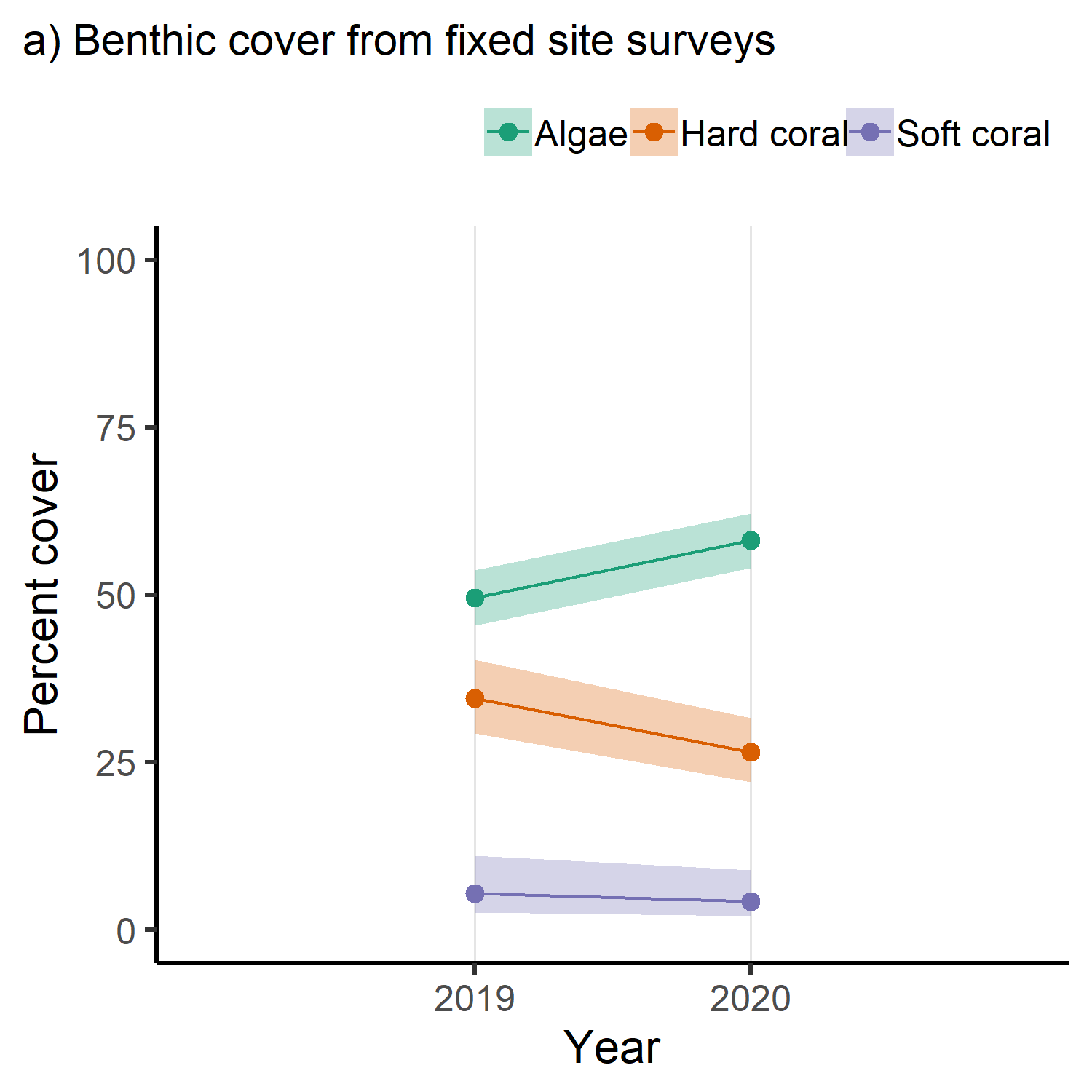

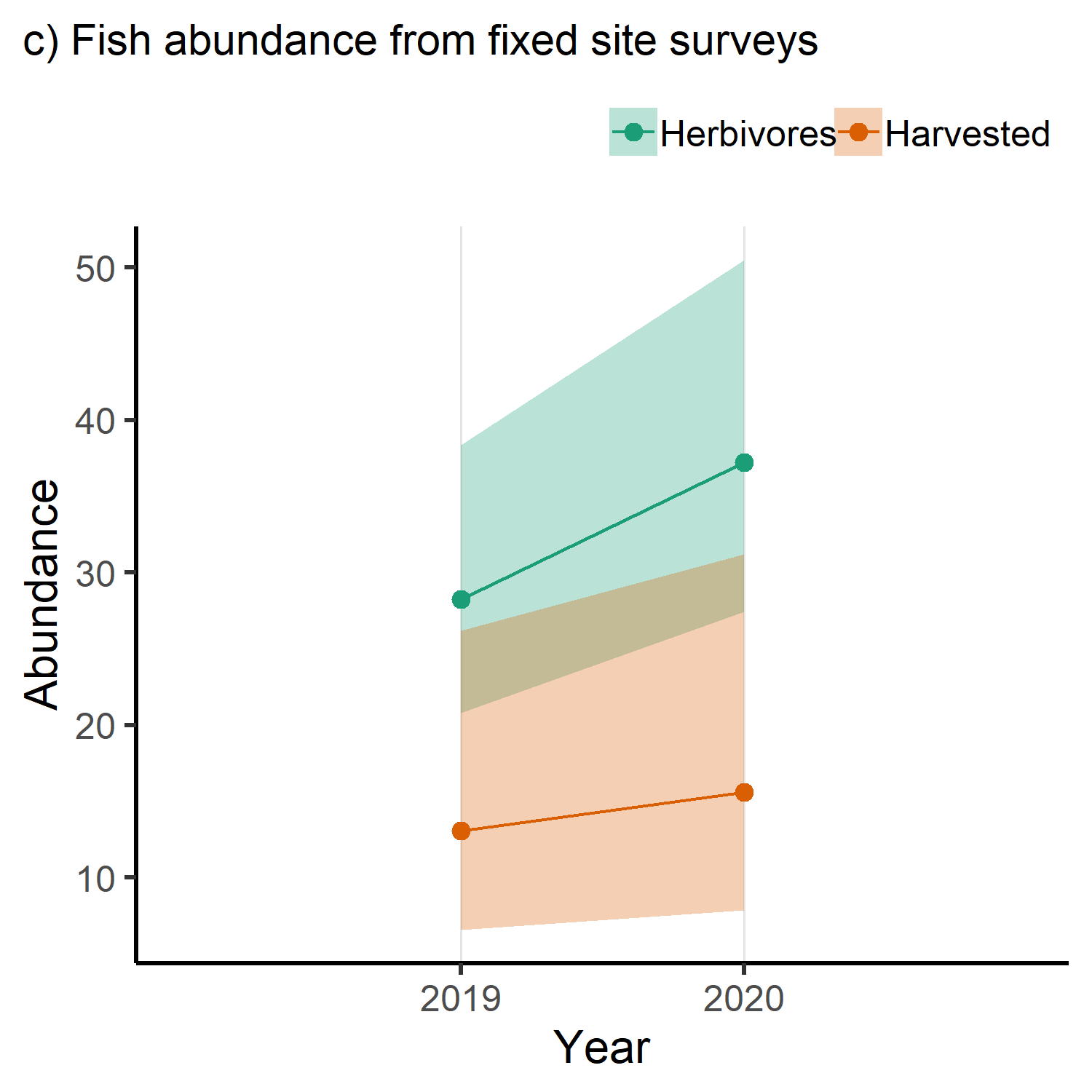

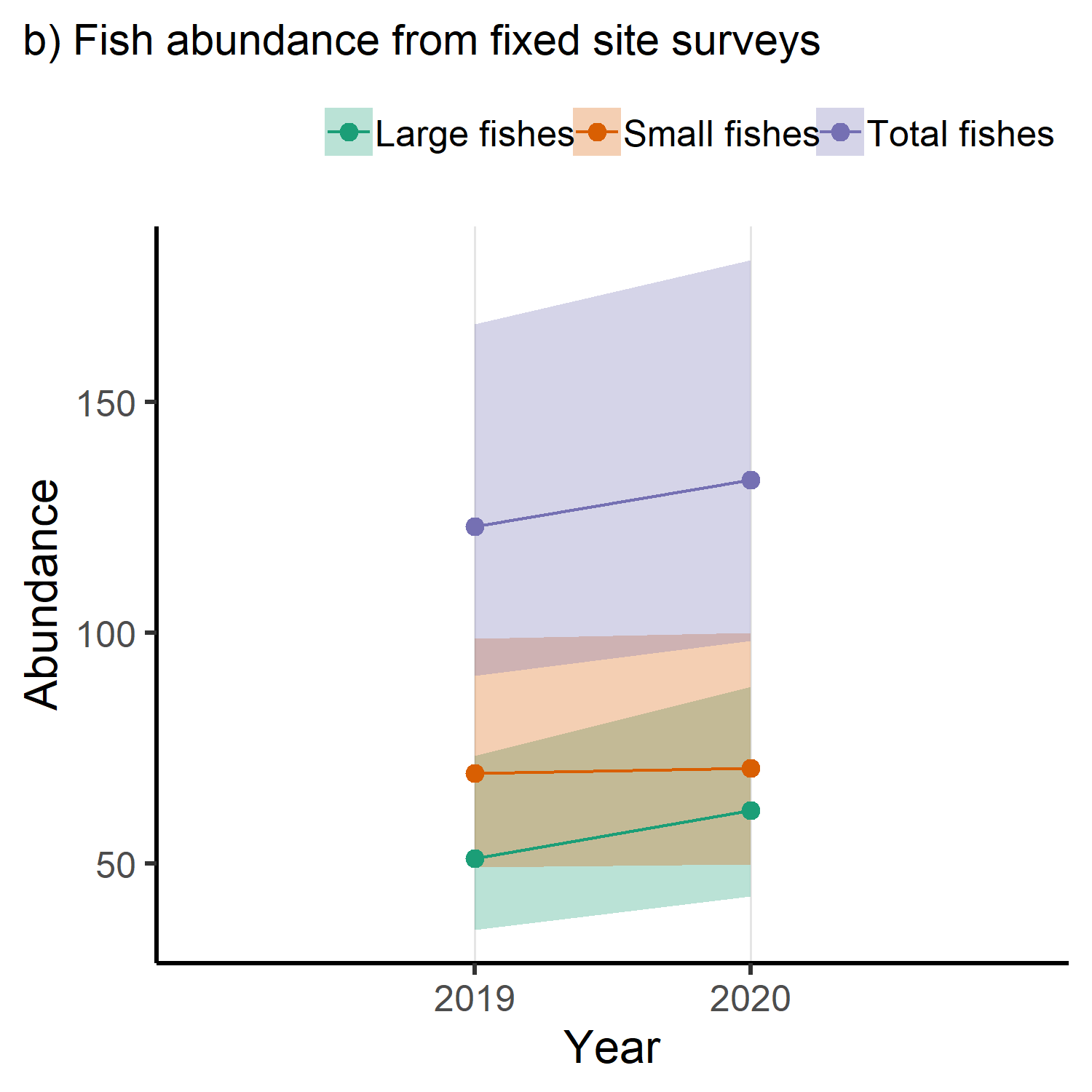

More detailed fixed site surveys were conducted on scuba at four reefs and recorded low levels of coral bleaching, restricted to scattered individual colonies, were recorded. Low numbers of coral colonies with coral disease were recorded on all reefs. Similarly, there were low numbers of the corallivorous snail, Drupella spp. Coral juveniles were observed in multiple size classes at densities likely to support reef recovery. More results on fish and benthic assemblages from fixed site surveys will be available soon.
Table 2: Summary of manta tow surveys of reefs in the Princess Charlotte sector. Arrows indicate the trend in live coral cover and A. solaris since last survey; ▲ = increase, ▼ = decrease, " " = no change. Outbreak Status: NO no outbreak, PO potential outbreak >0.1 COTS per tow, IO incipient outbreak >.22 COTS per tow, RE recovering, AO = Active Outbreak>1 COTS per tow.
|Reef||Shelf Position||Tows||Previous survey year||Total A. solaris per reef||A. solaris per tow||A. Solaris Outbreak Status||Live Hard Coral Cover %||Soft Coral Cover %||Survey Year|
|OSBORNE REEF||Inner||41||2017||0||0 ▼||NO ▼||3.5 ▼||2.6 ▼||2020|
|13124S||Mid||62||2019||8||0.13 ▲||NO ▲||20.5 ▲||4.7 ▼||2020|
|13040S||Outer||49||2019||0||0||NO||16.5 ▼||4.5 ▲||2020|
|CREECH REEF (NORTH)||Outer||37||2019||0||0 ▼||NO||39.2 ▲||3.7 ▼||2020|
|DAVIE REEF||Outer||49||2019||0||0 ▼||NO||24.4 ▼||2.8 ▼||2020|
|SAND BANK NO 1 REEF||Outer||38||2019||0||0||NO||25.6 ▲||2.9 ▼||2020|
|13093A||Mid||19||2013||0||0 ▼||NO ▼||7.1 ▼||3.8 ▼||2020|
|CORBETT REEF||Mid||100||2019||0||0||RE||10.3 ▼||2.4 ▼||2020|
|HEDGE REEF||Mid||40||2013||0||0 ▼||NO ▼||2.9 ▼||3 ▼||2020|
Figure 2: - Sector-wide changes in coral cover and the numbers of A. solaris for survey reefs in the Princess Charlotte sector of the GBR. Orange trend line = Hard coral. Purple bars = Crown-of-thorns (COTS)
